Italian Army NH90

One Year and 1000 Flight Hours in Afghanistan

patch NH90 1000h

Italy's Aviazione dell'Esercito has been operating the NH90 Tactical Transport Helicopter in Afghanistan for over a year now. Report by Federico Grattoni

emblem task force Fenice

On 20 August 2012, the first flight of the NH90 in the skies of Afghanistan took place at Forward Support Base (FSB) Herat. It had arrived two days prior by C-17 Globemaster III from Bologna, starting the Italian Army's first combat deployment of its NH90 Tactical Transport Helicopter (TTH), designated UH-90A in Italian service. By September, the other four had also arrived at FSB Herat. The five NH90 TTHs (E.I. 214, 215, 217, 219, 220) were assigned to Task Unit Nemo, part of Task Force Fenice (Phoenix) of the Italian Army Aviation (AVES - Aviazione dell'Esercito). Task Force Fenice provides tactical transport and evacuation support in the area of responsibility of ISAF Regional Command West. Italy is the lead nation of RC-West, which commands four Provincial Reconstruction Teams (PRT). In addition to PRT Herat led by Italy, RC-West includes the PRTs at Chaghcharan, Farah, and Qala-e Naw.

patch NH90 Task Unit Nemo

The NH90 took over from the previously deployed AB205 MEP (six Agusta-Bell 205 'Huey' helicopters upgraded with Mission Equipment Package that had replaced the Italian Army's initial deployment of the AB412). The NH90s are operated alongside the heavier CH-47C Chinook transport and the A129 CBT Mangusta attack helicopters of the AVES deployment.

The NH90 has now spent over a year in Afghanistan and clocked up more than 1,000 flying hours. Enough time to take a look at how this helicopter is doing in Afghanistan. We do this based on our visit to Task Force Fenice in late June 2013, when we were able to meet and have a talk with staff and observe the daily activities, often in difficult environmental conditions, to ensure the efficient operation of the "Black Bumblebee" as the NH90 TTH or UH-90A is called here.

emblem task unit Nemo

The Task Unit Nemo was established about two years ago for the operational deployment of the NH90 TTH and consists of about fifty personnel, from flight crews to technicians, coming from the 25° Gruppo Squadroni "Cigno" of 7° Reggimento "Vega", the 26° Reparto Elicotteri Operazioni Speciali ( REOS - Helicopter Special Operations Unit), and from the Task Group NH90 that had formed for the new type's entry into operational service with the AVES.

The hangar at FSB Herat, which houses the Italian NH90 helicopters

The flight is housed and maintained in a large expeditionary hangar on FSB Herat. Here all the checks are carried out, including the 15-hour process of visual technical checks for the Safety Inspection at every 50, 150, and 300 flying hours.

The deployed helicopters are all Initial Operational Capability Plus (IOC+) standard configuration, as the Final Operational Capability (FOC) was not available yet. The Italian Army has only just received the NH90 in FOC configuration; the first FOC NH90 was handed over in May 2013. Compared to FOC, the IOC+ standard does not include the Italian SICRAL secure satellite radio system yet and also lacks Link16, the NATO-standard secure datalink for communications and images between platforms.

However, the IOC+ standard introduced several improvements and new settings for the navigations system's digital cartography software. Overlays can be superimposed on the digital map with corridors, points, routes, polygons, dangers, bases for known areas. Also color-coded 3D mapping image can be displayed to indicate the flying altitude relative to the terrain.

Two of the deployed NH90s have also been equipped with the Rover 4 system to receive images directly from the AMX aircraft and UAV Predators.

The NH90 had been tested in hot and dusty conditions in Logrono, Spain, but the real test has been Afghanistan. The high temperature and the average height (hot-and-high) have not resulted in any reduced engine performance. Take-offs at 45° to 1000 meters are no problem, but landing in very dusty conditions with little to zero visibility in the most delicate phase of landing a helicopter is still very dangerous. An indispensable aid is provided by the HMSD Helmet Mounted Sight and Display. In addition to providing night vision and FLIR infra-red displays, flight data is projected onto the display ensuring greater safety for maneuvers, including position, altimeter and variometer data.

Helmet Mounted Sight and Display aids the pilot in night and brown-out conditions

There is always dust and sand during take-off and landing in the field, but it can also affect the helicopter when flying at low altitude. Due to the strong winds here some serious sand clouds can form. This is a cause for concern: the dust then infiltrates everywhere and even the smallest particles can cause harmful build-up, erosion, abnormal wear, and component fatigue.
But even after 300 flight hours no serious problems had been discovered. There had been no accumulation of dust in the filters of the ventilation systems that cool the electronics, only the weapon systems needed attention and more frequent maintenance. The anti-dust system to protect the engines has proven to be effective. The engines are still running efficiently, but power tests carried out every 25 hours show a decrease in output at some power levels. But it won't be known until the engines are put through a general revision if this is due to any problem caused by dust ingestion, such as premature wear of the components, compressor erosion, accumulation in the combustion chamber, turbine blade glazing due to vitrification phenomena.

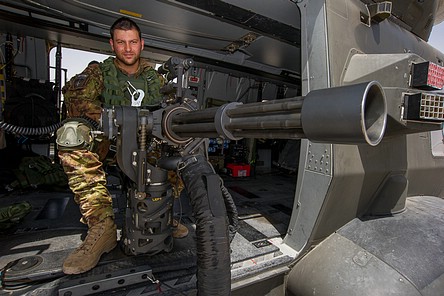

The armament consists of two 7.62mm M134D six-barreled, electrically driven Gatling Guns, one on each sidedoor. The gunner's seat and weapon mount are on a platform that can be rotated inwards to clear the doorway. Each has a battery pack for autonomous operation of the "Minigun" when not powered by the electrical system, and a magazine for up to 4,400 rounds, which is generally loaded half full.

Good view of the gunner's platform and M134D Minigun mount, as well as the Saphir-M chaff/flare dispenser units of the EWS

For protection, it has the full EWS (Electronic Warfare Suite) of integrated active and passive electronic support measures, including the chaff/flare dispenser units on each side. Also the entire cabin floor is covered by armor, and additional armor on the cockpit seats.

The crew consists of five at minimum: the pilot (right) and the commander of the aircraft (left), two M134 gunners, and one flight engineer responsible for loading and offloading. The helicopter carries a water container, backpacks with survival equipment and an AR 70/90 assault rifle for each individual, and M249 Minimi machine gun for the the flight engineer for the protection of loading and unloading operations when the rear ramp is used.

The arrival of the NH90 led to a significant increase in terms of range, flight safety, rapid response, and load capacity for the Forward Medevac mission. Forward Medevac is needed when the evacuation is too risky or out of range of the Standard Medevac of each base, or when a Standard Medevac will not be able to recover, stabilize, and transport the patient or casualty to a ROLE 2 medical facility within the so-called Golden Hour, the period of time during which medical treatment will have the highest probability of ensuring survival.

For the Forward Medevac mission, the NH90 carries a medical team of three and one PTS (Patient Transport and Support) system. The PTS is essentially a stretcher with the life support equipment integrated into one compact mobile unit to transport and stabilize the patient. For transporting passengers or troops, the NH90 has seven folding seats in the cabin.

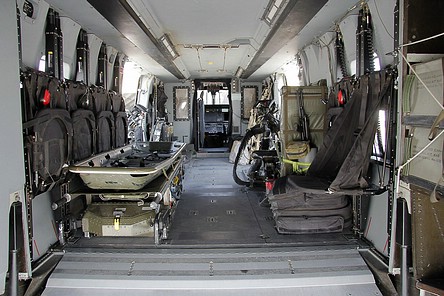

View inside the NH90 TTH Cabin from the rear ramp, note the PTS, folding seats, and M249 Minimi

Field missions are always carried out paired with another NH90, or with other helicopters mostly the CH-47C Chinook or A129CBT Mangusta, and in addition to Medevac also include transporting people and cargo to and from forward operating bases (FOB), insertion and extraction of special forces, and providing precision fire support for special operations with a sniper team on board.

The ROVER equipped NH90s are also used for airborne command and control of ground units with army staff, or for airborne forward air control with a Joint Terminal Attack Controller (JTAC) onboard.

Having overcome the initial technical difficulties, inadequate supply of spare parts and the occurrence of cracks in the windshield, the operational availability of the NH90 is now very high, as evidenced by the Task Unit's flight reaching 1,000 flying hours in Afghanistan within a year.

The NH90 represents a big generational leap in the world of tactical transport helicopters. For the Italy's Army Aviation the NH90 is even two generations apart from its other tactical transport helicopters. Beyond the proud official statements on the NH90 having exceeded the performance expectations by some 15 percent, the crews and technicians are also very satisfied with the new type.

Pilots and specialists finally have a modern platform with the performance and other improvements needed for the difficult and challenging environment. In particular the stability of the platform, modern navigation system, and the helmet display and night vision of the NH90 allow them to conduct the Task Force's missions with a high level of safety, while being able to respond quicker and with increased operational capability .


Video of the NH90 Photo Flight

Video of the NH90 photo flight from FSB Herat, with footage taken on board the photographer's helicopter from a fixed camera on the door as well as handheld camera.
Length4:48 min

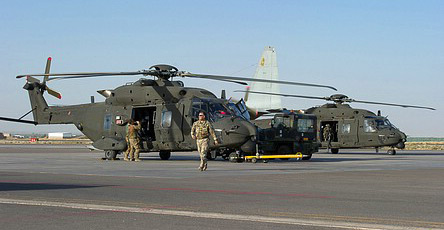

NH90 on the Task Force Fenice platform at FSB Herat, note the A129CBT Mangusta in the background

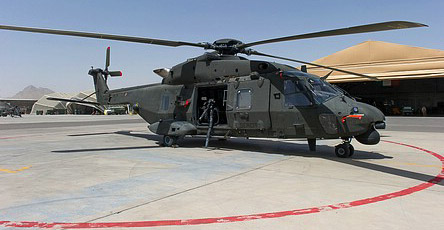

Italian Army NH90 TTH at FSB Herat
NH90 taxiing past a CH-47C Chinook of Task Force Fenice
Rear view of the NH90 at FSB Herat
The Task Unit Nemo hangar, which houses its NH90 helicopters
Task Force Fenice first NH90 flight in Afghanistan ornament
The first NH90 flight in Afghanistan ornament in memory of two lost colleagues: Magg. Filippo Fornassi killed in NH90 crash of June 2, 2008, on Lake Bracciano,
and Col. Roberto Caruso deceased after illness on June 23, 2012.
The Italian Army uses the UH-90 designation and Black Bumblebee nickname for the NH90 TTH

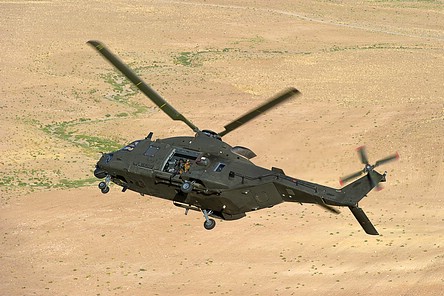

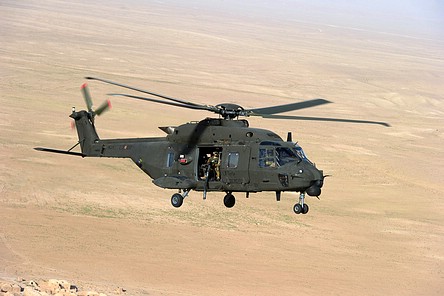

Italian Army NH90 in flight over the Afghan desert
Afghanistan's high terrain can be very challenging in low visibility
The NH90 has proven itself to be coping well in the hot-and-high conditions
The helicopters are regularly inspected to make sure there's no accumulation of dust
The NH90 M134D Miniguns use the standard 7.62mm NATO rounds
One of the doorgunners getting ready for the flight
The modern NH90 provides easy access for maintenance

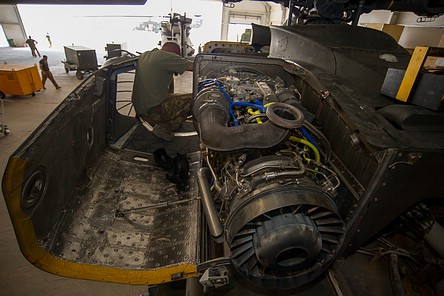

Close-up of one of the NH90's GE T700 engines
The pilot in the right seat
The crew always includes the flight engineer/loadmaster
Crew boarding the helicopter for a flight
The Italian Army NH90 TTHs are equipped with FLIR 'barrel' turret, weather and terrain/obstacle avoidance radar, missile warning sensors
Front view of the Italian NH90 TTH or UH-90 E.I.219

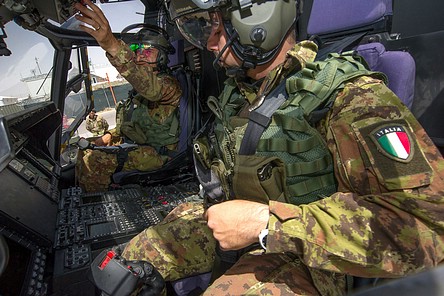

The commander in the left seat
Engine start up
Reflection of the CH-47C Chinook
View of the doorgunner and the landscape of Herat

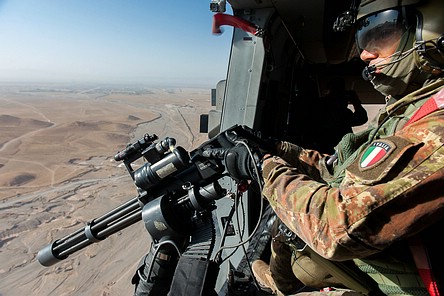

View of the M134D Minigun and the landscape of Herat

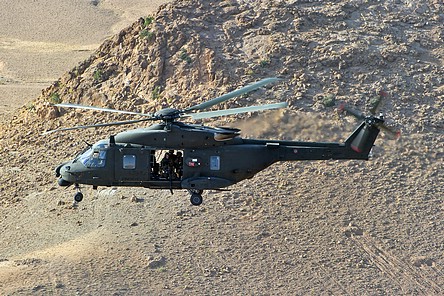

NH90 TTH breaking from our helicopter

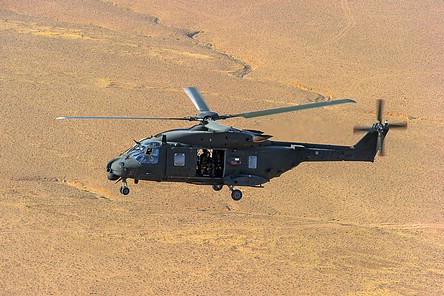

Italian Army NH90 TTH over the Afghan desert
NH90 in the landing behind a CH-47C Chinook also from TF Fenice
NH90 landing at FSB Herat
NH90 exiting the runway
NH90 marshalled to the platform
NH90 powering down
Two NH90s of Task Unit Nemo on the platform of FSB Herat
