Su-15 'Flagon' Armament
Standard armament of Su-15 consisted of two R-98 missiles carried on the outer wing pylons, one IR-guided and one radar guided variant. Initially the Su-15 carried also the older R-8M variants. The two IR-guided R-60s on inner wingpylons became standard on all Su-15 armed variants from 1973 onwards. The Su-15TM with Taifun-M radar was armed with two modernised R-98M missiles, two R-60 and underbelly gunpack consisting of two UPK-23-250 gun pods.
 |
||||||

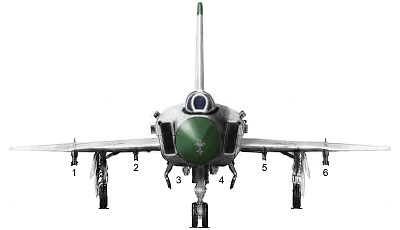

1 | 2* | 3 | 4 | 5* | 6 | |
| Internal: none | ||||||
| Guided A-A: R-8MR/R-8MT R-8M1R/R-8M1T R-98R/R-98T R-98MR***/R-98MT R-60 R-60M R-55**** | 1X 1X 1X 1X | 1X 1X 1X | | | 1X 1X 1X | 1X 1X 1X 1X |
| Unguided A-G: UB-32/UB-16 rocket launcher ** S-24 rocket ** ZB-350 incendiary tank ** FAB-500 ** FAB-250 ** FAB-100 ** | 1X 1X 1X 1X 1X 1X | | 1X 1X 1X 1X 1X 1X | 1X 1X 1X 1X 1X 1X | | 1X 1X 1X 1X 1X 1X |
| Other: UPK-23-250 23mm gun pod ** Fuel tank UR-8M training round | 1X | | 1X 1X | 1X 1X | | 1X |
| Notes | ||||||
|
* inner-wing pylons were fitted to existing and new-build Su-15 from 1973 onwards. ** only Su-15TM with PU-2-8 (wing) and BD3-59FK (fuselage) pylons, A-G only in theory because of lack fire control system. *** only with Taifun-M radar, all production Su-15TM. **** R-55 (AA-1) unconfirmed, but can be seen on Su-15 monument in Rzhev, Russia. |
||||||
